TriCore VX Software Development Tools |
|

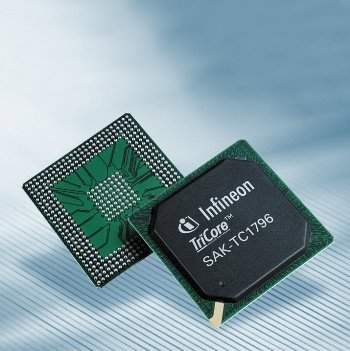

英飛凌TriCore 架構是一個革命性的32位元微處理器。完美的設計可以提供三種(高速處理器具有即時處理特性、等同DSP 的運算能力、具有效能與價格成反比的RISC 下載/儲存特性)不同需求。Tasking 與Infineon 有多年深厚的合作經驗，Tasking TriCore Software Development Toolset 在普遍開發者中已認定是TriCore 開發中的一項標準配備。Toolset 包含有C/ C++ Compiler, Assemblers 供應TriCore 各種不同的系列核心(TriCore, HSM, MCS, XC800, PCP) 所使用，multi-core Linker/ locator 以及除錯均整合在Eclipse Platform 上，整合成一完整的開發環境IDE (Integrated Development Environment)。
自1977年開始的開發軟體經驗，Tasking 已在各個領域建立了良好的聲譽。以下有幾項Tasking Compiler 特性說明Tasking 是如何成為 TriCore 汽車電子開發領先工具：
- Stable and reliable code-generation, proven in use for more than 10 years in a wide variety of development projects, including safety-critical automotive applications
- Industry proven highest code-optimizations for both speed and size
- Versatile Linker Script Language, offering maximum configurability
- Toolset with the shortest (compile-link) build times of your project
- Long-term support arrangements, enabling you to support your customers for the life-time of your products and beyond
- Long-term partnership and co-operation agreement with Infineon to guarantee future tool availability, enhancements and support
- Software security arrangements (ESCROW) to back-up our long-term support commitment
- Legacy version support of "frozen" compiler versions
- No use of any open source in the code-generation chain or libraries
- Commitment to support your ISO 26262 compliance roadmap
- Very active development, close co-operation with Tier 1s and Infineon on toolset extensions (e.g. for AURIX support)
- Continuous compiler qualification against industry-standard test suites and real life applications, such as powertrain ECU code
- Guaranteed compatibility to all relevant third party solutions, including debuggers, AUTOSAR operating systems and AUTOSAR MCAL drivers
- Safety joins performance! What you get from the AURIX, is what you also expect from your compiler! The TASKING compiler is the #1 compiler for TriCore on the market, with an unbeatable proven in use track record.
 Tasking TriCore Compiler V4.0, V4.1, V4.2, V4.3版特性及增加之功能介紹
- Introduction of multi-core support for the AURIX generation
- Dedicated and fully integrated "VX" C compiler support for the HSM core, based on TASKING's field proven ARM Cortex-M C compiler
- Dedicated and fully integrated "VX" C compiler support for the 8-bit XC800 Standby Controller of the AURIX TC26x series
- Boot mode header support with CRC calculated by linker
- Code generation support for the MCS cores of the GTM unit
- C++ compiler updated to support ISO/IEC 14882:2003 and select C++0x features
- Update of Eclipse IDE to the Juno release and CDT 8.1.x
- Widely appreciated high-level ELF-object dumper
- Data Reference Modification (Variable Editing) functionality included
- Debugger support for new AURIX boards
- The compiler's very advanced multi-core support for AURIX has been developed in collaboration with Infineon and leading automotive powertrain Tier 1s.
各版本相關細節請連結專頁說明：Release Note v4.0,Release Note v4.1, Release Note v4.2 and Release Note v4.3. 最新版本資料 DM TriCore VX V4.2.PDF。
除了最新版本外，Tasking 亦提供舊版流行軟體如各種V3.x 版；或是搭配原設計好之整合環境如AUTOSAR 之V2.5r2, V2.2r3 版本；與CrossView debugger 整合之V3.x 以前的EDE版本等。相關說明均詳載於舊版TriCore VX V2.x Datasheet。
Tasking TriCore VX-Toolset Compiler 概觀
IDE and C/C++ optimizing compilers
- Integrated Development Environment (IDE) based on Eclipse
- Plug-in that tightly integrates the TriCore toolset into the IDE
- enabling extensibility though plug-ins from third parties (e.g. for RTOS configuration or debugging)
- C/C++ compilers with integrated static code analysis for MISRA C and CERT C
- C/C++ compiler for TriCore
- C compiler for Hardware Security Module (HSM)
- C compiler for XC800 Standby controller
- C compiler for Peripheral Control Processor (PCP)
- Conforming to many industry standards, including:
- ISO/IEC 9899:1999(E), as well as ANSI-C X3.159-1989; C++ compatible with ISO/IEC 14882:2003
- MISRA C guidelines supported: MISRA-C:1998 and MISRA-C:2004
- CERT C secure coding standard
- Infineon's TriCore EABI
- ANSI/IEEE-754 floating point support
- ELF/DWARF support for tool interoperability
- C/C++ libraries, run-time libraries, floating-point libraries provided in source code
- Code profiling support in the compiler for collecting application statistics, helping to identify areas that could benefit from efficiency improvements
- Run-time error checking, helping to detect errors during program execution
- Code Compaction optimization:
- upto 10% more compact code on TC1.6 core based TriCore derivatives
- upto 5% mode compact code on TC1.3/TC1.3.1 based TriCore derivatives
- Functionally similar to VX-toolset for C166, allowing for easier migration between XC2000 and TriCore
- Project set up wizard to help you to configure a new project
- Conversion utility for project migration from EDE (toolset release v2.x) to Eclipse IDE (release v3.0+)
- TriCore CPU functional problem support:
- Code bypasses generated by the compiler
- Code checks by the assembler
- Protected libraries, tuned per TriCore derivative
Assemblers, linker/locator, utilities
- TriCore main core assembler
- Dedicated assemblers for HSM, XC800, PCP and MCS
- Versatile linker/locator script language
- Powerful data/code overlaying facilities
- Data/code section allocation
- Automatic and user specified allocation in target memory
- New make utility with support for parallel builds on multi-core systems, for faster compilations
- Map file viewer enabling easy analysis of project builds
Integrated Debugger
- New debugger technology, fully integrated into Eclipse, ready for the latest industry debugging trends like multi-core application development
- Debugging in C++, C and assembly through a simulator or On-Chip (OCDS) debugger
- Simulator debugger supports the TriCore and the PCP and is included with all product bundles
- On-Chip debugging is supported through the Infineon miniWiggler with DAP interface or a simple cable for Infineon evaluation boards with on-board wigglers. The miniWiggler is often provided with Infineon starter kits, but also available directly from Altium
- For OCDS the TASKING debugger makes use of Infineon's Device Access Server (DAS), which is provided with the toolset
- DAS allows remote debugging over a TCP/IP network
- Board support for a wide range of standard evaluation boards from Infineon (TriBoards, EasyKits) and 3rd parties like Hitex is included
- Integrated support for programming flash memory
Tasking TriCore VX-Toolset 支援TriCore Device 表
TC1130, C1164, TC1762, TC1782, TC1791, TC1766,TC1767, TC1167, TC1197,TC1736, TC1784,TC1792,TC1166,TC1793,TC1796,TC1797, TC1798 AURIX, TC26x, TC27x,TC29x, more ...
舊式以及特殊使用未公佈之TriCore 處理器同樣在有支援，可將處理器型號提供給台灣代理商陸傑科技進行了解。
Tasking TriCore VX-Toolset 與其它開發工具介紹。PDF下載。
Hitex 開發板及開發工具, Lauterbach Trace32 開發工具同樣為陸傑科技代理。
TASKING TriCore VX-Toolset 產品版本及產品編號
各版本分為單機(Node Lock License), 單機網路分享(Floating License) 及伺服器主機分享等版本。Infineon Wiggler OCDS Debugger 需搭配Professional, Premium 版本才能使用。
Product codes
| 07-200-160-804: |
Standard Edition VX-toolset for TriCore |
| 07-200-160-806: |
Professional Edition VX-toolset for TriCore |
| 07-200-160-808: |
Premium Edition VX-toolset for TriCore |
| 07-290-000-001: |
USB-JTAG wiggler for OCDS debugging. Optional to Professional or Premium Edition |
|
