HighTec EDV System

公司簡介

HighTec EDV-Systeme GmbH HighTec 成立于 1982,不斷積累發展到目前的規模,HighTec 目前是全球提供商業型"Open Source" 編譯器供應商。

在性能效率上、功能的安全、從單核到多核的系統移植以及AutoSAR 環境上,HighTec 提供完整的開發及技術咨詢服務。

HighTec 專注于開發技術軟體和硬體系統,應用於不同的高端產業: 汽車行業、工業行業、安全和保密行業、軍事 應用等。在多年的研發經驗上,小型管理程式在開發過程中變得越來越複雜,這樣意味著系統維護的難度會越來越高。因此我們的程式都進行模組化,模組之間通訊通過資訊體來完成,這樣就誕生了我們的即時操作系統 PXROS。面向目標微型核心結構的 PXROS 有以下特點:可靠性、穩定性好;操作性好;可測試性好。







HighTec Development Platform 編譯器





HighTec 秉持永續經營的理念確保未來產品同樣具有獨立性及可靠性,同時也是一項具有安全性的嵌入式系統開發工具。HighTec Development Platform 編譯器保有可移植性,隨時支援最新的處理器及技術進行更新版本。

產品組成:

  • HighTec's C/C++ multi-architecture and multi-core compiler suite with leading optimization technology
  • Support of architecture specific function blocks like GTM/MCS and HSM module

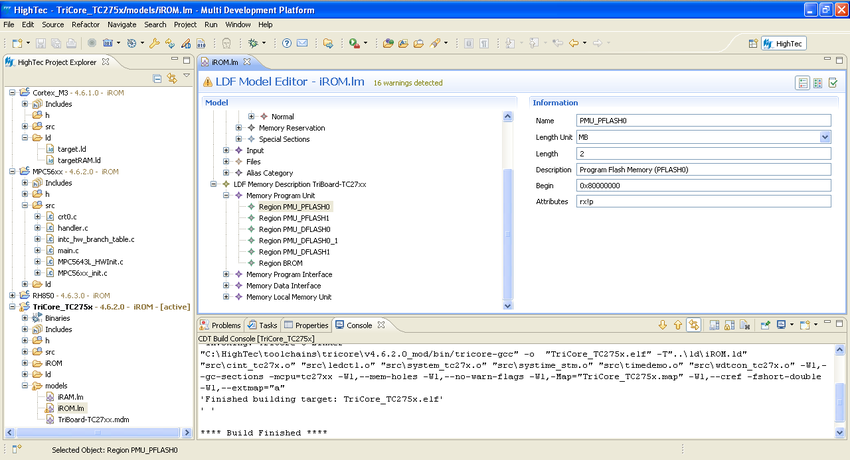

  • Eclipse IDE with extended project settings and graphical interface for linker description configuration

特點

  • Multi-core support (ISO and EABI compliant)
  • Long-term support and maintenance service
  • Latest optimization strategies
  • code compaction (reverse inlining)
  • global optimization strategies
  • Module-based grouping of data to minimize load address operation
  • Options per file and source code fragments
  • Optimized for Auto-Coding
  • Commercial standard and math libraries (no open source)
  • AUTOSAR MCAL driver support

Used by leading Tier1 and OEM

先進的多核心支援

  • Hide-and-visibility concept - interfaces between cores on linker level
  • The proprietary solution for migrating to multi-core
  • Application code can be ported to multi-core without source code modification
  • Proven software can be easily migrated to multi-core silicon
  • Based on linker level (ISO and EABI compliant) - a proprietary solution for migrating to multi-core
  • Core-ID information stored as meta-information on sections and in objects; easy extract info by analyzing symbol table
  • Support of homogenous and heterogeneous Multi-Core architectures

支援:TriCore/AURIX, Power Architecture, RH850, Arm



HighTec PXROS 即時作業系統(Micro Kernel Real-Time OS)





PXROS 是經認證過的Micro Kernel Real-time operating system,提供最高等級的資料保護、功能的穩定及安全。

PXROS 是微內核(Micro kernel) 為基礎,以目標導向的操作系統,使用精細的硬體保護機制(MPU),進一步改良了封包及結構緊密度,適合使用現代的微控制系統中,例如TriCore 這類的處理器。依據PXROS 設計原則上實施的應用程序,在運行 PXROS-HR Multi 時,不需要作PXROS 任何改變。

PXROS自1985可以成功使用至今,有三個非常重要特點就是:

  • Excellent interrupt behavior (no interrupt locking!)
  • Philosophy of OS leads to a good structure and architectural clearness
  • Extreme robust behavior under heavy load

PXROS 另一最重要的規則就是-- 封包訊息及活動(Activity)。

  兩者特點都是提供系統的可靠度及避免意外含惡意干擾。Activities (task in the sense of pricesses) 是存在包囊中,僅能與可以交換訊息對象及訊息進行通訊,如此運作可以減少系統資源。

支援處理器系列:TriCore/AURIX, Power Architecture, Arm (Cortex-M)

HighTec QKIT (Qualification)





HighTec EDV-System 與Validas AG 合作開發 Qualifcation Kit (QKit),可以自動分析絕大部份的安全認證標準。

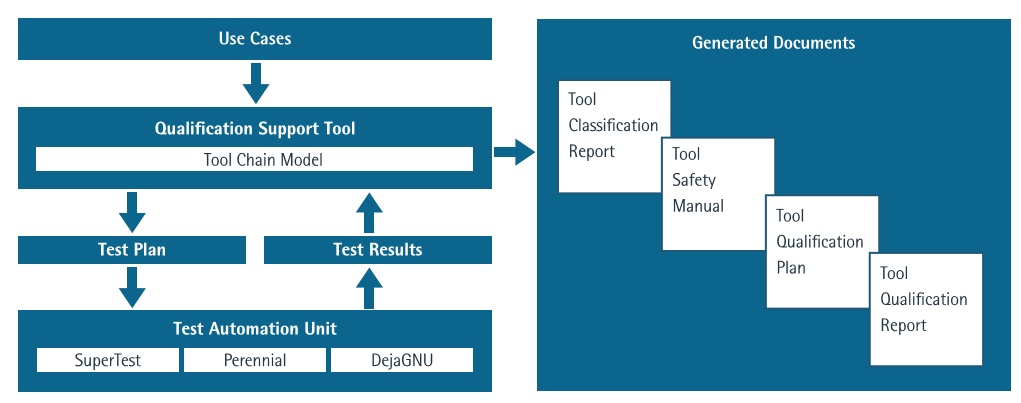

QKit 是由 Qualifcation Support Tool (QST) and a Test Automation Unit (TAU)兩大部份所組成。

最高支援安全認證等級如下:

  • ISO26262 ASIL D
  • IEC 61508 SIL4
  • EN 50128 SIL4

支援處理器系列:TriCore/AURIX, Power Architecture and Arm (Cortex-R, Cortex-M)

HighTec Consulting (Design & Support)





Multi-Core

  • Migration to Multi-Core
  • Performance optimization
  • 3rd party tool integration

Safety

  • Development of error detection measures
  • Validation and qualifcation service
  • Functional safety concepts

AutoSAR

  • Concept
  • Development
  • integration of customer‘s modules
  • On-site support
  • Training

Partnership

  • Preferred Design House of Infineon
  • Freescale connect partner
  • ST tool partner
