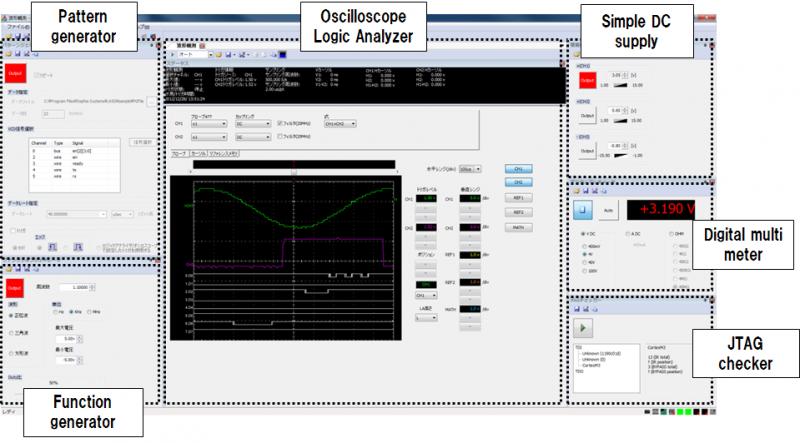

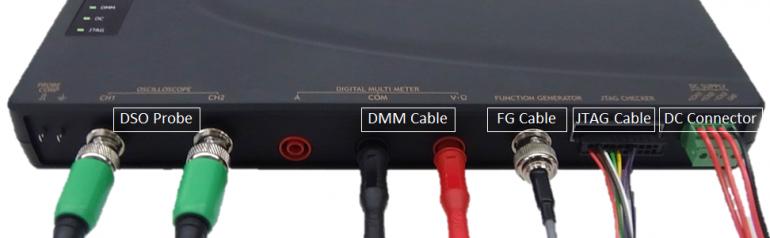

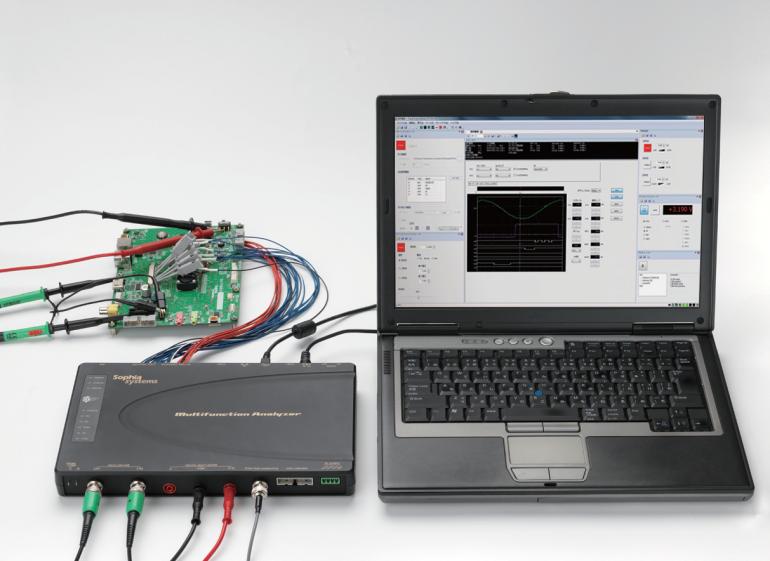

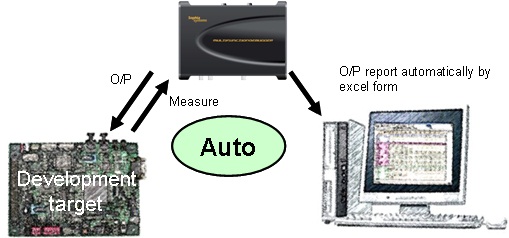

1. Simple DC supply : Output +5V (Target board power on.) 2. JTAG checker : Search JTAG route. 3. Output the JTAG route result to the report file. 4. Function generator : Generate sine waveform. 5. Oscilloscope function : Wait the trigger. 6. Snapshot (Capture waveform) to the report file. 7. Digital multi meter : Measure the target voltage. 8. Output measured voltage to the report file. 9. Wait 30 minutes. 10. Repeat execution : Loop back to ⑧ atone time.

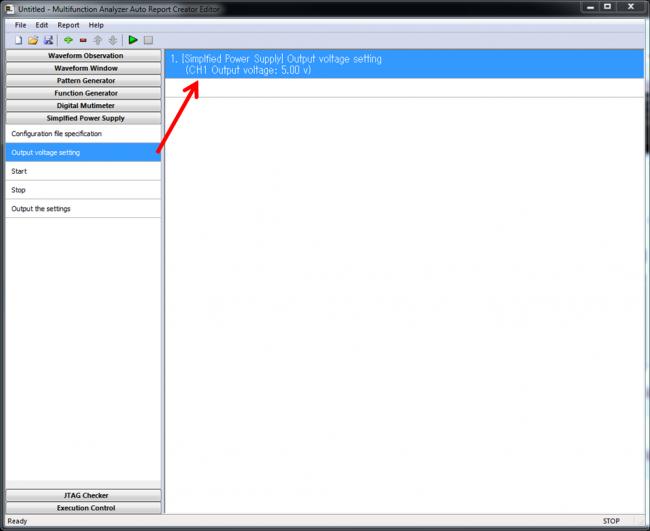

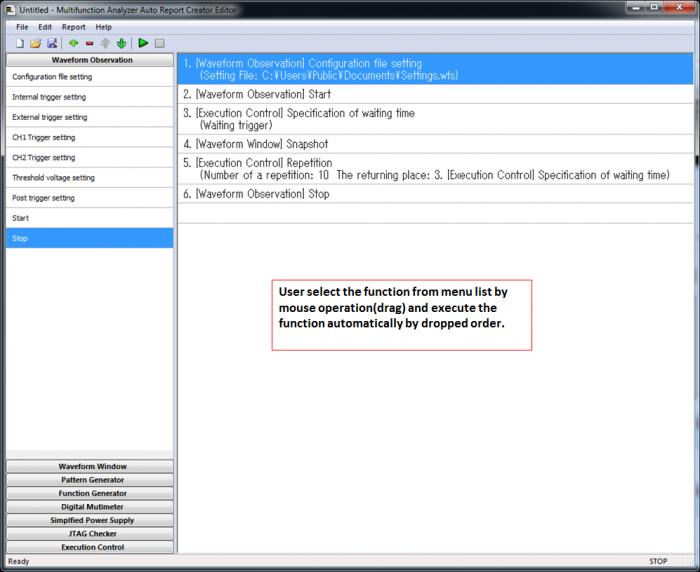

Screen 1: Simple Power Supply: 5V output Drag an executed function from the left menu

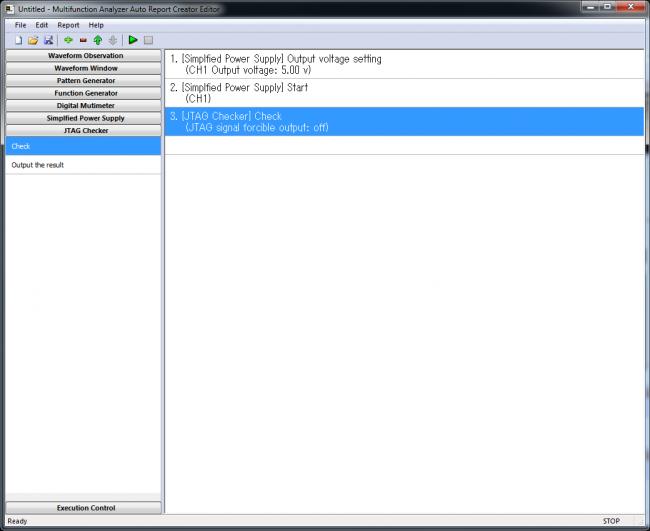

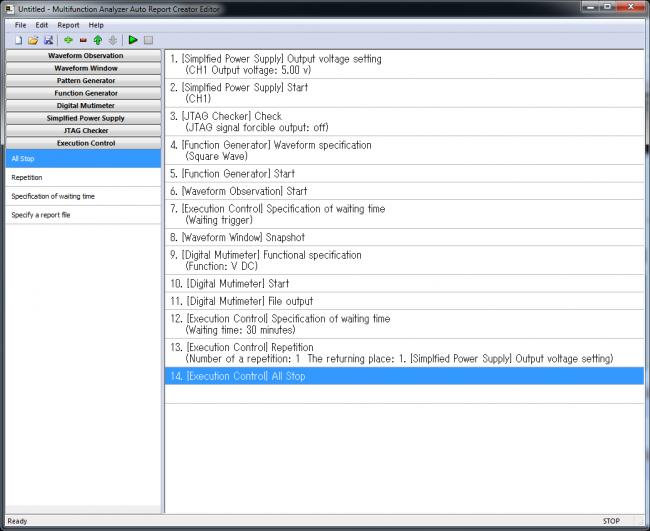

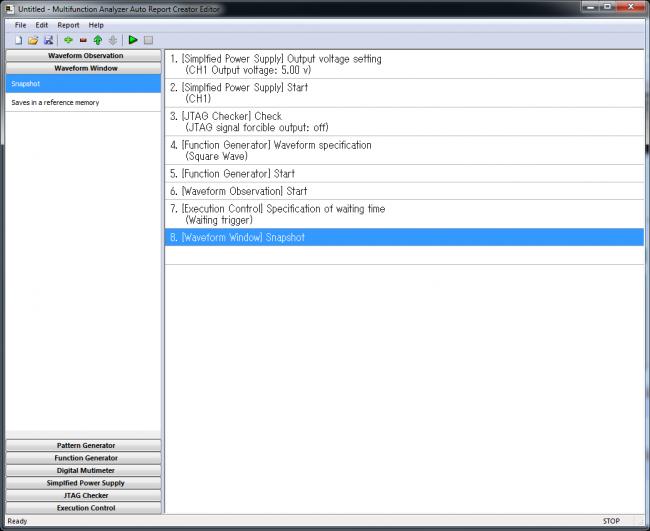

Screen 2: JTAG Checker function: Check the process, only placing in the order to be executed

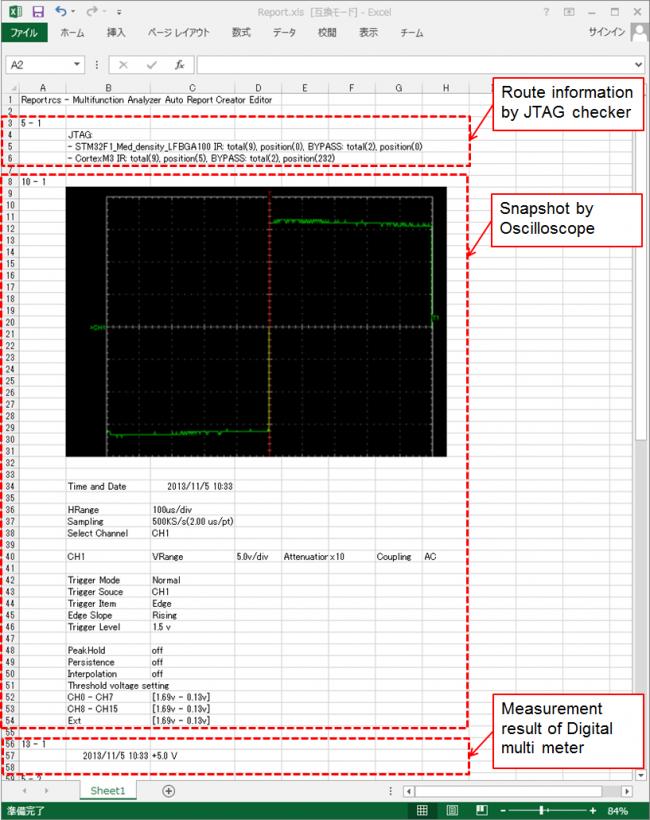

Screen 6: Print report of the snapshots (record of waves)
